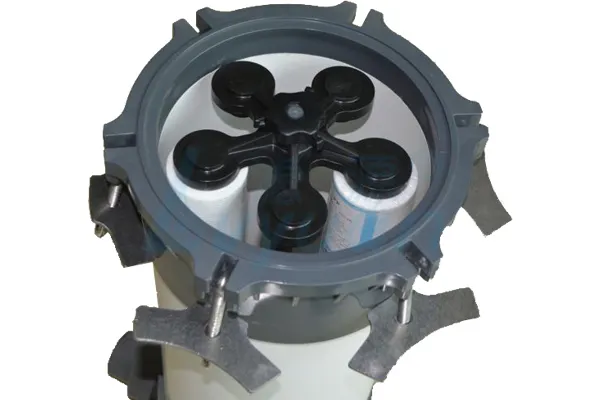

UPVC Cartridge Filter Manufacturer in Ahmedabad

UPVC cartridge filter system, Hydraulic oil filter is high precision. It consists of the housing and cartridge elements, mainly used in pretreatment. It can be widely used in electronics industry, sewage treatment beverage, foods, pure water treatment, also it can acts as home water purification equipment.

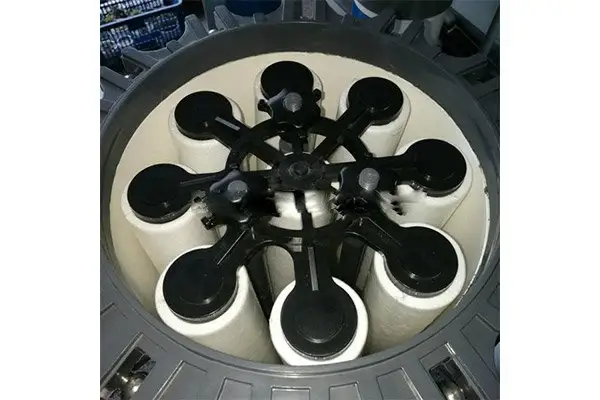

UPVC Filter Housings Manufacturer and Suppliers India
UPVC Filter Housings Manufacturer and Suppliers India
upvc filter housing india

Operating Information

Type Size Cartridge
Pcs		 Cartridge
Size		 In/out
(mm)		 Drainer
(mm)		 Max Pressure
CWC -9DC2 CWC-8DC2 Ø315-H745 9/8 20” DN80/
ANSI
3”		 DIN1/2”
or
ANSI1/2”		 105 PSI
CWC-9DC3 CWC-8DC3 Ø315-H995 30”
CWC-9DC4 CWC-8DC4 Ø315-H1245 40”

NOTE:
It can install all material; all precision’s cartridge 9 pcs or/& 8 PCS, which I.D. is 28-30mm, O.D. is 65-70mm. The highest working temperature is 45 C. The size of the two holes in cap is 1/4″ BSP threaded. On the cap, one side pressure gauge is mounted and on another side vent is mounted.

Product Merits

  • All the parts of this series filters are made of UPVC material.
  • The inlet and outlet are in the same line, which connected with the pipe is a 3″ union.
  • The distribution system of filter is distributed from bottom to top. Water is well-proportioned with small strike to cartridges and air is easy to be discharged.
  • The bottom system of filter is designed together as a whole with the top localizer & closure system.
  • The lid and the body are connected using eyebolts flange method, Ensure a good seal performance and ensure the filter can stand higher pressure.
  • filter is corrosion resistant; it can be used is SS-none-replace field.

Application

  • Pharmaceuticals – Paints & Inks – Dyes & Intermediates
  • Petroleum Derivatives – Food & beverages – RO Pre filtration
  • Water Treatment – Bore Well water – Processing Chemicals
  • Coolants – Dairy – & Many More
