Leading Exporter of Glass fiber wound yarn cartridge filter, Oil Adsorbing Filter Cartridges, Resin Bonded Filter Cartridges Manufacturers & supplier India

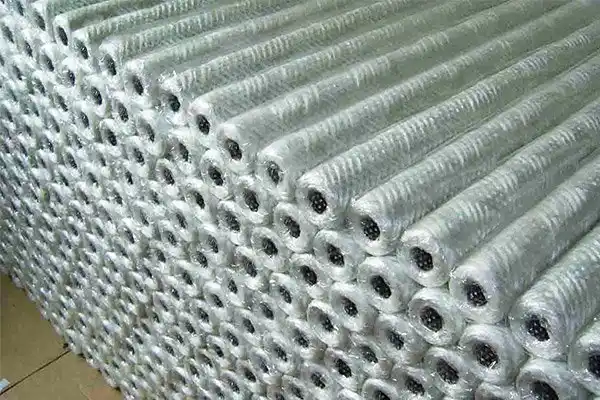

Glass Fiber Wound Yarn Cartridge Filters are improved wound yarn cartridges for micron industry liquid processing. Glass fiber wound yarn cartridges are over-strikingly winded as the normal polypropylene or bleached cotton wound yarn, constructed with denser layers inside and coarser layers outside. Superiors glass fiber wound cartridge filters possess good filtration capacity and long life, high flow rate but low pressure drop, excellent dirt holding capacity and efficiency compared to conventional string wound filter cartridges, Oil Adsorbing Filter Cartridges, Resin Bonded Filter Cartridges.

Filter Cartridge Manufacturer & Supplier
glass wound cartridge manufacturers
glass wound cartridge manufacturers in gujarat
Filter Media Glass Fiber
Length 5″, 10″, 20″, 30″, 40″, 50″ (According to customers requirements)
Inside Diameter 28mm, 30mm (Special ID can be customized)
Outside Diameter 2.4″(61mm), 2.5″(63mm), 2.55″(65mm) Special OD is accepted
Filtration Rating 1μm, 5μm, 10μm, 20μm, 30μm, 50μm, 75μm, 100μm
Core SS 304, SS 316
End Cap DOE

Feature

  • High temperature withstanding and good chemical compatibility
  • Glass fiber wound yarn cartridges are easy to install, replace and maintain
  • Glass fiber wound yarn filters have wide applications,long service life and reasonable cost
  • Glass fiber wound cartridge filters have no drop,stable construction and good filtration efficiency
  • Continuous strand winding geometry of wound yarn cartridges provides performance consistency for liquid filtration

Performance

Operation Data for Glass Fiber Wound Yarn Cartridge Filters

Maximum Operating Temperature Glass Fiber with SUS Core : 400℃
Max. Differential Pressure 2.7 bar at 27 ℃(50 psi at 80℉)
1.4 bar at 60 ℃(20 psi at 140℉)
0.7 bar at 82 ℃(10 psi at 180℉)
Recommend Change out Differential Pressure 1 bar (14 psi)

Application

Water Purification Dilute Acids &Alkalies Prefilter for Membranes
Oil Water Separation Electroplating Industry Electronics and Semiconductor
Petrochemical Industry Power Plant Water Treatment Organic Acids
& Solvents Filtration
