Air Filters are categorized as below with respect to the performance requirement

panel filter box manufacturers in India

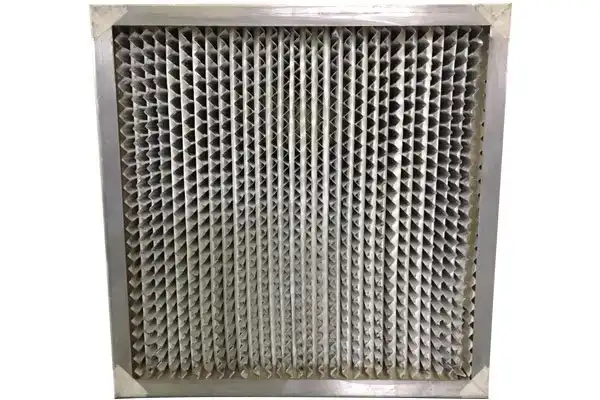

panel filter box manufacturers in ahmedabad

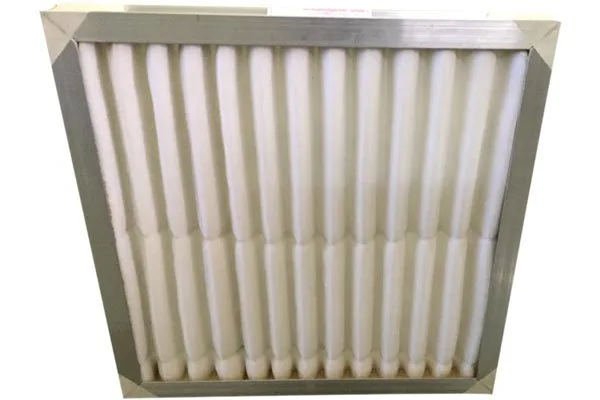

panel filter box manufacturers in india
Panel Box Type Filter Manufacturer,Supplier,Exporter
panel box type filter system manufacturers
panel box type filters in India, South Africa, Peru, Turkey, Brazil

(1) DISPOSABLE TYPE AIR FILTER

  • Coarser Filters are useful to remove the coarsest particles. They are available with Card board frame material and Glass Fiber Foam (G-3) Media.
  • Available Size – 610 mm x 610 mm x 50 mm, 610 mm x 610 mm x 100 mm
    And Customised Sizes also……
    (At Additional Die Cost)
  • Customization is available for min. 1000 No. requirement.
  • Mail Application – Paint Booth Arrestance

(2) PRE FILTER

Frame Design Box Type, Flanged Type
Frame MOC Aluminum, GI, MS + Powder Coating, CRCA, SS 304
Filter Media HDPE + Non Woven + Aluminum Expanded / Mesh HDPE (3 Ply) + Aluminum Expanded / Mesh HDPE (4 Ply) + Aluminum Expanded / Mesh
Available Class G 2, G3, EU – 4, EU – 5
Filtration Efficiency 90% Down to 25 – 30 = / 20 = / 10 =
Design ROD Support design Expanded / Mesh Support design



High Temp. up to 250° C Suitability With Glass Fiber Media Also

Sr. No Flange Size (mm) Box Size (mm) Air Flow Capacity (In CFM)
EU – 4, EU – 5 (10 0)
1 610 x 610 545 x 545 x 50 2000
2 610 x 610 545 x 545 x 100 2000
3 610 x 610 545 x 545 x 150 2000
4 610 x 610 545 x 545 x 200 2000

(3) RISER FILTER

Frame Design Box Type, Flanged Type
Frame MOC Aluminum, GI, MS + Powder Coating, CRCA, SS 304
Filter Media : HDPE + Non Woven + Aluminum Expanded / Mesh HDPE (3 Ply) + Aluminum Expanded / Mesh HDPE (4 Ply) + Aluminum Expanded / Mesh
Filtration Efficiency 90% Down to 10 & 20 µ

Available Sizes

Sr. No Flange Size (mm) Box Size (mm)
1 305 x 305 240 x 240 x 25
2 610 x 610 545 x 545 x 25

(4) FINE FILTER

Frame Design Box Type, Flanged Type
Frame MOC Aluminum, GI, MS + Powder Coating, CRCA, SS 304
Filter Media : HDPE + Non Woven + Aluminum Expanded / Mesh Spun Bonded Polyester
Available Class EU – 6, EU – 7, F 8, EU – 9
Filtration Efficiency 95% Down to 5 µ; 99% Down to 3 / 1 µ



High Temp. up to 250° C Suitability With Glass Fiber Media Also

Sr. No Flange Size (mm) Box Size (mm) Air Flow Capacity (In CFM)
EU – 4, EU – 5 (10 0)
1 610 x 610 545 x 545 x 150 1000
2 610 x 610 545 x 545 x 300 2000
3 610 x 305 545 x 240 x 150 500
4 610 x 305 545 x 545 x 300 1000
5 305 x 305 240 x 240 x 150 250
6 305 x 305 240 x 240 x 300 500

Panel – Box Type Filter Manufacturer

Our company, Ami Enterprise is in the leading position of manufacturing and supplying Panel-Box Type Filter that are fabricated using the effective quality of material that is procured from the consistent and trustworthy vendors of the market. It is used in several industries to clean the dust particles. These are available in several sizes and lengths as per our valuable customer’s requirement. It is widely demanded for best efficiency, strong, easy to install and trustworthy. They are used in industries to maintain particles ranging from 1 micron to 50 microns. These are basically air intake filters, which is working with negative pressure of systems. The most amazing features are Consistent and Reliable Performance, High Strength, Pressure Resistance and dust Holding Capacity, superb Flow with Low Pressure Drop, Nominal Filtration Rating, and Graded depth filtration gives outstanding performance.

The washable panel box type filter is made from non woven needle punched synthetic media and this is surrounded within a Aluminum/ galvanized steel/ Stainless Steel Channel frame with EPOXY sealing ensuring non air bypass. It gives tremendous performance in conditions of high relative moisture. We are the Panel-Box Type Filter supplier and exporter in Naroda, Bopal, Chandkheda, Gandhinagar, Maninagar, Ahmedabad, and Gujarat, India. Contact us or Inquiry now for more Details.

Application

  • Pharmaceutical industry
  • Nuclear Installation Clean – Room Systems
  • Laminar Flow Working Bench
  • Hospital Sterile areas
  • Biological Centre
  • Space purpose Food processing zone
